Discussion Starter · #1 ·
Ok, if your starter just clicks intermittently when you try to start it, the chances are it is the solenoid contacts that have worn. This is quite an easy and cheap fix, £13.50 for parts against £120ish for a new starter. I removed my starter a couple of weeks ago to get the serial number from it (needed to order the parts) and I cleaned all the old worn contacts before I temporarilly refitted it whilst I waited for the new parts to arrive. The starter worked fine for a couple of weeks, but then started playing up again, so with my new parts to hand I took it off again.The whole job from start to finish took me just an hour, and that included taking photos.


Step 1: Disconnect the Battery

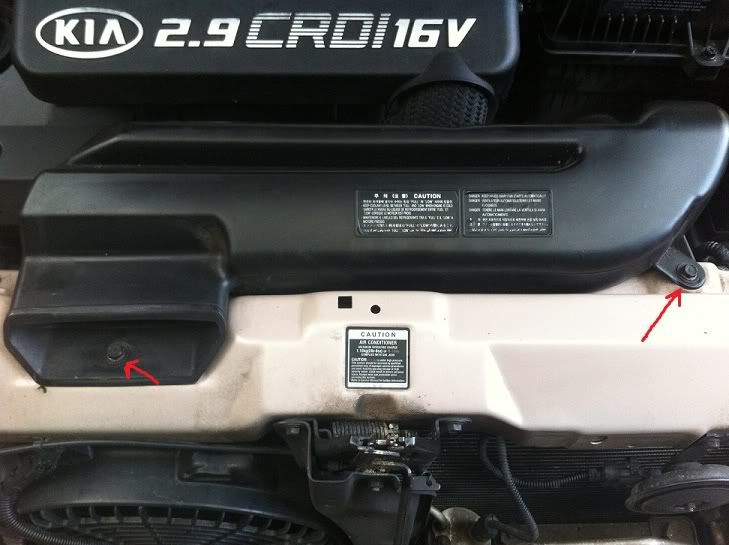

Remove these 2 bolts.

Step 2: Remove Airfilter Box

Remove the 2 airfilter box nuts, and the 1 at the rear of the box.


Unscrew the clamp around the pipe, also remove the electrical connector from the top of the filter.


Remove the complete air filter box from the car.


Unscrew the clamp around the turbo inlet and remove the hose.
Warning, whilst this is removed be very careful no debris enters the Turbo Inlet!


You can now see the starter!

Step 3: Remove the starter


This is hard to see because of the location, but at the back of the starter are 2 electrical connectors.
1 is a simple push fit trigger lead, and the other is the main battery lead and is secured by a 12mm nut. Remove both of these, be careful not to lose the 12mm nut!


Remove the 2 (mine only had 2 bolts, not sure if this is the norm because there is a 3rd hole??) 17mm bolts that hold the starter. 1 is on the top and can be easily seen (see previous photos) but the 2nd is underneath and cant be seen without a mirror, but can be felt.


Now the starter is loose, and with a bit of jiggling, it can be removed from the car.

Step 4: Remove the Solenoid

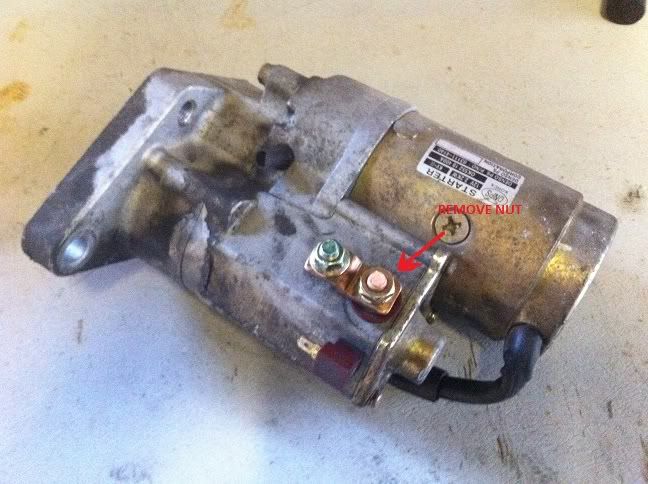

Remove the nut


and this one too.

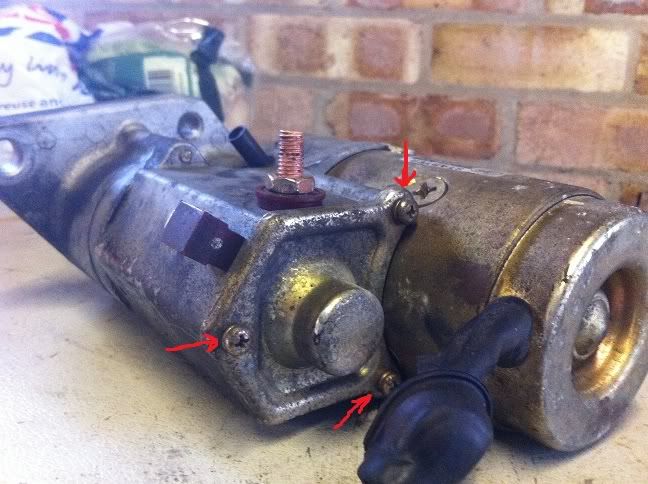

Remove these 3 screws,

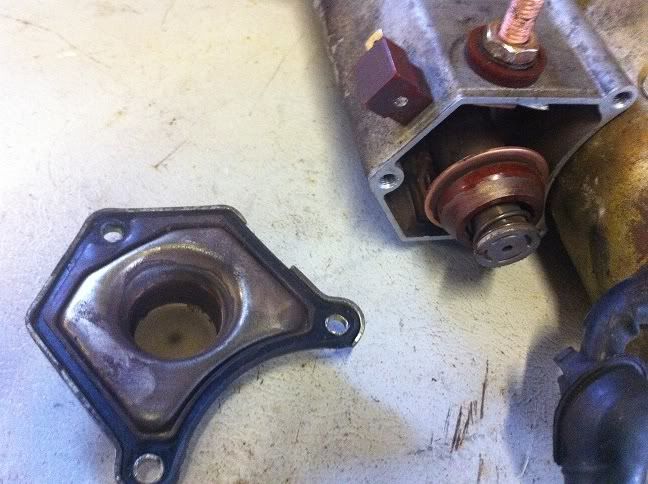

and remove the end cap.

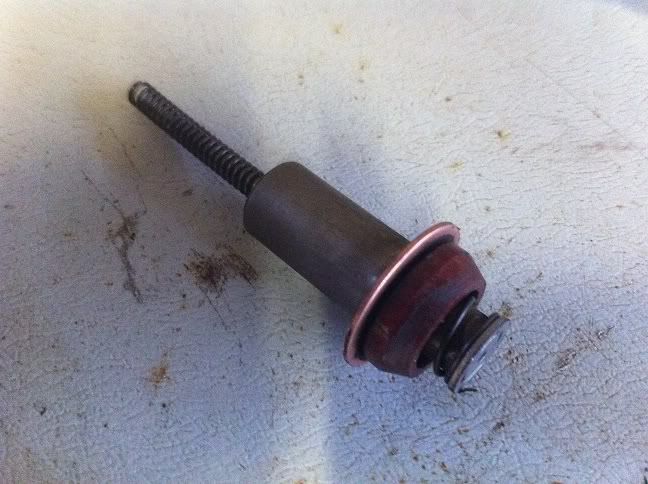

Remove the Solenoid push rod, be careful not to lose the spring!

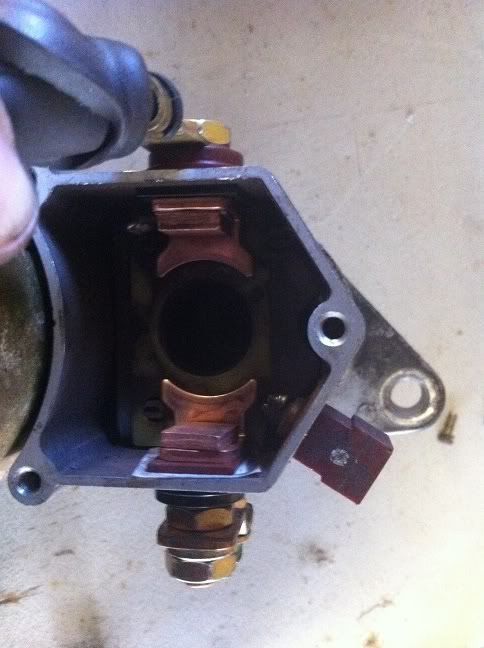

Next remove the 2 nuts holding the connectors, take note of the positions of any washers, spacers etc.


OLD vs NEW

Step 5: Refit New Parts


Refit is reversal of removal, using any new parts/washers etc supplied in the kit.
Be very careful to refit all washers and spacers in the correct order, otherwise a short circuit could occur.
Fit the new push rod and then refit the end cap. refit the nuts and cable to the electrical points.
Ok, now the starter is done, if you are happy it has all been put together correctly you can refit it back onto the car. getting the starter back in position can take a bit of jiggling about to get it lined up.
OnceALL removed parts are refitted, reconnect the battery and test your starter. Job Done.

I'm not sure if the starter can be removed any easier from underneath the car, but I found this way pretty easy.


·
Registered
Joined
·
422 Posts
Excellent 'How to' - Thanks for taking the time and trouble to compile it and even the details where the parts can be obtained. A friend of mine used to refurbish starters and alternators and he says that 99% of the starters he repaired the fault lay with the contacts in the solenoid as you have demonstrated.Thanks again - appreciated


·
Registered
Joined
·
155 Posts
Discussion Starter · #5 ·
Please note I am not related to the person or business in the post with the contact details for the required parts. The parts you need may be available from other companies, this was the company I purchased my parts from, and the contact details are not an advertisement
Thanks


·
Registered
Joined
·
422 Posts
m623d said:
Please note I am not related to the person or business in the post with the contact details for the required parts. The parts you need may be available from other companies, this was the company I purchased my parts from, and the contact details are not an advertisement


Thanks
I heard you calling him Dad! - only joking - no, thanks for the info - I believe if any member does get good service or comes across a source of quality parts,etc- they should pass on details to others - thats what the Forum is all about, Thanks for the info.


·
Registered
Joined
·
702 Posts
m623d said:
Please note I am not related to the person or business in the post with the contact details for the required parts. The parts you need may be available from other companies, this was the company I purchased my parts from, and the contact details are not an advertisement
Thanks
Thanks for taking the time and trouble to do this. It all helps other when we have the problem. Not sure if the starter is easier to take out from underneath the car as the drive shaft and the bulkhead are quite tight at that side of the car along with the steering rack,I've always juggled them out from above iI think the only thing I have done from under the car was the 12 mil nut with a socket.


·
Registered
Joined
·
390 Posts
m623d said:
The parts needed can be ordered from a well known auction site, or by contacting this guy:www.repairkitsuk.comor Call Carl on 07500197742 for any help or advice (9am to 9pm 7days)
Hi. Great photos and write up. The www. address is the one I came across and added to my favorites. I was going to us this supplier, his web site is very good. Now I have seen the parts and your photos I wil be doing mine when car back from dealers...£900.
Thanks Steve G Blackpool
